Correct bolt for oil filter strap 64c

#1 Post by Dave Whittick » Fri Mar 23, 2018 10:37 pm

Could somebody post a picture or describe the correct head markings/dimensions for the proper bolt for the oil filter strap on my 64?

User avatar
Greg Bryan
356Talk Moderator
Posts: 2205
Joined: Sat Oct 04, 2008 1:05 pm
Tag: Be Nice!
Location: San Pedro, CA 90732

Re: Correct bolt for oil filter strap 64c

#2 Post by Greg Bryan » Fri Mar 23, 2018 11:58 pm

See line number 113 in spreadsheet

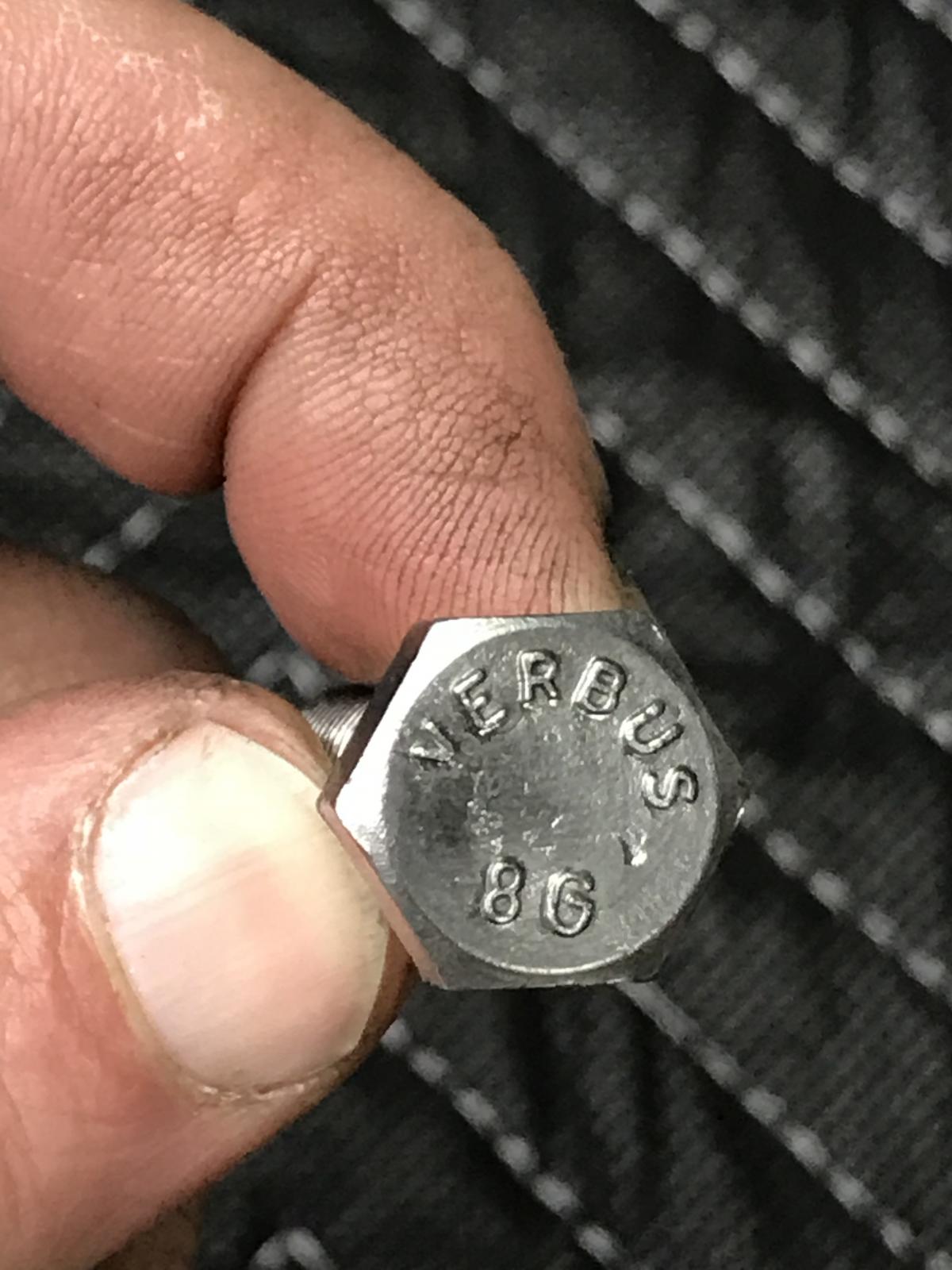

This is what was on my 6/64 SC Cab but I believe the bolt could have markings from any of the regular suppliers.
Attachments
Porsche Nuts and Bolts.xls
(47.5 KiB) Downloaded 555 times
Greg Bryan
356Talk Moderator

User avatar
Mike Wilson
356 Fan
Posts: 4148
Joined: Tue Apr 15, 2008 4:37 pm
Location: SW Los Angeles

Re: Correct bolt for oil filter strap 64c

#3 Post by Mike Wilson » Sat Mar 24, 2018 12:50 am

Greg is correct as verified by by the parts manual. I've seen Verbus, Karro and Kamax bolts used. Per the parts manual: M8x45 DIN 931-8G.

Mike
Mike Wilson
Lomita, CA
'63 B coupe

Dave Whittick
356 Fan
Posts: 81
Joined: Wed May 10, 2017 4:14 pm

Re: Correct bolt for oil filter strap 64c

#4 Post by Dave Whittick » Sat Mar 24, 2018 12:31 pm

Thanks for the help guys. Always learning. That spreadsheet is a great resource.

Now that I have your attention, do either of your recognize this bolt?

User avatar
Greg Bryan
356Talk Moderator
Posts: 2205
Joined: Sat Oct 04, 2008 1:05 pm
Tag: Be Nice!
Location: San Pedro, CA 90732

Re: Correct bolt for oil filter strap 64c

#5 Post by Greg Bryan » Sat Mar 24, 2018 3:58 pm

That looks like a homemade version of the no. 4 bearing location bolt
Attachments
Greg Bryan
356Talk Moderator

User avatar
Greg Bryan
356Talk Moderator
Posts: 2205
Joined: Sat Oct 04, 2008 1:05 pm
Tag: Be Nice!
Location: San Pedro, CA 90732

Re: Correct bolt for oil filter strap 64c

#6 Post by Greg Bryan » Sat Mar 24, 2018 4:01 pm

I say home made because it appears to be ground on a bench grinder but it may only be the photo
The manufacturer of the one I’m holding is Ribe
